The Python Array API Standard

STEP-UP RSLondon Conference 2026

Patrick Roddy

2026-06-29

GLASS: Generator for Large Scale Structure

Overview

GLASS is a code used in cosmology to generate simulations of the full observable universe. In its current form, the primary user base of the code are collaborations for large galaxy surveys, which are a cornerstone of modern cosmology.

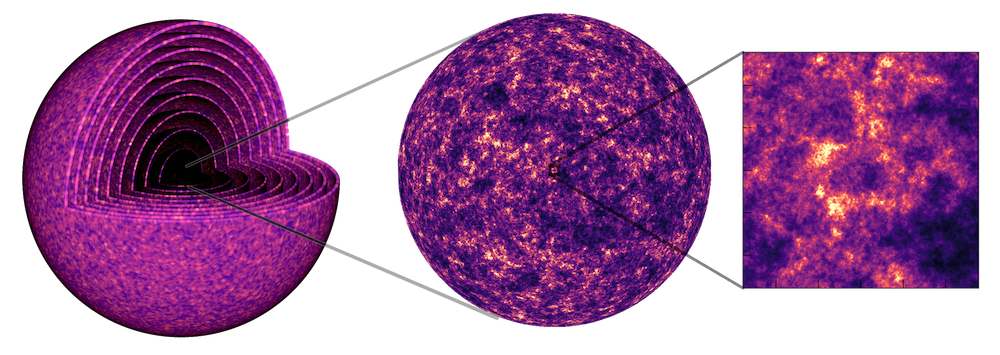

A three-part diagram of the GLASS code simulation process. Left-to-right the diagram shows nested spherical shells of the universe, a full-sky projection of cosmic matter density, and a high-resolution zoomed-in view of density fluctuations.

The Team

Nicolas Tessore (Principal Investigator + Technical Staff)

Me (Co-Investigator + Technical Staff)

Co-Investigators: Alessio Spurio Mancini, Arthur Loureiro, Benjamin Joachimi, Jason McEwen, Niall Jeffrey.
Research Administration: Rebecca Martin.

The Aim

Transform GLASS into a GPU-enabled code.
Improve the performance of simulations with GPU acceleration.
Implement and adapt parallel processing elements that utilise GPU capabilities.
Optimise GLASS for modern GPU architectures.
Enable differentiable simulations using JAX (in part or in full).
Embed GLASS within N-body simulations running on GPU infrastructure for post-processing.

Python Array API Standard

The Array Ecosystem

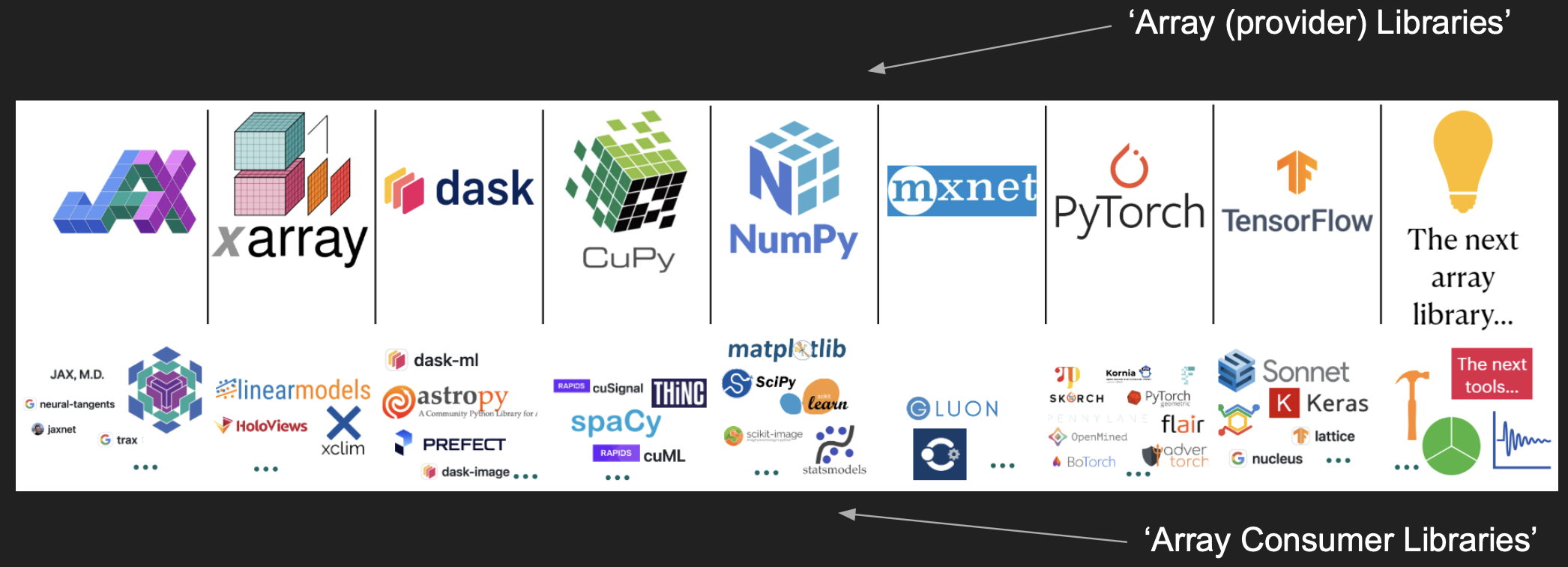

A graphic denoting popular array provider libraries and array consumer libraries. — Aaron Meurer: Python Array API Standard, SciPy 2023

from typing import Any
import numpy as np
from numpy.typing import NDArray

def unit_vector_numpy(
    x: NDArray[Any],
) -> NDArray[Any]:
    """Only works with NumPy."""
    return x / np.sqrt(np.sum(x * x))

from glass._types import AnyArray

def unit_vector_array_api(x: AnyArray) -> AnyArray:
    """Works with any supported array backend."""
    # NumPy, CuPy, PyTorch, JAX, ...
    xp = x.__array_namespace__()
    return x / xp.sqrt(xp.sum(x * x))

Alternatively the helper function array_api_compat.array_namespace(x) can be used to compute the xp.

Migration Guide

import numpy as np
xp = np

np.transpose(x, axes) → xp.permute_dims(x, axes)
np.concatenate(...) → xp.concat(...)
np.absolute(x) → xp.abs(x)
np.bool_ → xp.bool
np.array(x) → xp.asarray(x)
x.astype(dtype) → xp.astype(x, dtype)
np.trace(x) → xp.linalg.trace(x)
…

Array API Libraries

array-api: outlines the standard.
array-api-compat: compatibility layer and helper functions.
array-api-extra: extra array functions.
array-api-strict: strict implementation useful for testing array consuming libraries.
array-api-tests: testing suite for array providing libraries.
array-api-typing: future static typing support.

Our Experience

Wrapping Functions Outside the Specification

import numpy as np
from glass._types import AnyArray

def gradient(f: AnyArray) -> AnyArray:
    """Return the gradient of an N-dimensional array."""
    xp = f.__array_namespace__()

    if xp.__name__ in {"numpy", "jax.numpy"}:
        return xp.gradient(f)

    # If any other backend use default
    f_np = np.asarray(f, copy=True)
    result_np = np.gradient(f_np)
    return xp.asarray(result_np, copy=True)

Handling the immutability of JAX

NumPy
Array API (JAX)

import numpy as np

def yield_numpy_only_implementation(x):
    n = 10
    y = np.zeros((n, *x.shape))

    for i in range(n):
        for j, x_j in enumerate(x):
            y[i,...] = x_j * (i + j + 1)
        yield y

import array_api_extra as xpx

def yield_array_api_compatible_implementation(x):
    xp = x.__array_namespace__()

    n = 10
    y = xp.zeros((n, *x.shape))

    for i in range(n):
        for j, x_j in enumerate(x):
            y = xpx.at(y)[i,...].set(x_j * (i + j + 1))
        # to avoid mutating in subsequent iterations
        yield xp.asarray(y, copy=True)

Benchmarking with `pytest-benchmark`

Code Example
Benchmarking Output

import array_api_extra as xpx
import glass

def test_radialwindow(benchmark, xp) -> None:
    """check zeff is computed when not provided"""
    arr_length = 100_000
    expected_zeff = xp.asarray(66_666.0)

    wa = xp.arange(arr_length)
    za = xp.arange(arr_length)

    w = benchmark(glass.RadialWindow, za, wa)

    xpx.testing.assert_close(w.zeff, expected_zeff)

------------------------------------------ benchmark: 18 tests -------------------------------------------
Name (time in us)                                               Mean              StdDev            Rounds
----------------------------------------------------------------------------------------------------------
test_broadcast_leading_axes[numpy] (0001_5daafb9)            14.3906 (32.86)      0.8640 (91.93)      7884
test_broadcast_leading_axes[numpy] (NOW)                     14.0193 (32.02)      0.3437 (36.56)      8038
test_cumulative_trapezoid_1d[numpy] (0001_5daafb9)           74.8633 (170.97)     1.2138 (129.15)     8075
test_cumulative_trapezoid_1d[numpy] (NOW)                    75.4069 (172.21)     1.4036 (149.35)     8263
test_cumulative_trapezoid_2d[numpy] (0001_5daafb9)           73.7475 (168.42)     1.4709 (156.50)     7343
test_cumulative_trapezoid_2d[numpy] (NOW)                    73.8911 (168.75)     1.4670 (156.09)     7867
test_galaxy_shear[numpy-False] (0001_5daafb9)             2,756.7223 (>1000.0)   30.8210 (>1000.0)    1744
test_galaxy_shear[numpy-False] (NOW)                      2,724.6682 (>1000.0)   30.0616 (>1000.0)    1756
test_galaxy_shear[numpy-True] (0001_5daafb9)              3,458.8037 (>1000.0)   46.0236 (>1000.0)    1229
test_galaxy_shear[numpy-True] (NOW)                       3,378.0130 (>1000.0)  208.7110 (>1000.0)    1226
test_getcl_lmax_0[numpy] (0001_5daafb9)                       0.4582 (1.05)       0.0094 (1.0)        8066
test_getcl_lmax_0[numpy] (NOW)                                0.4379 (1.0)        0.0098 (1.04)       8223
test_getcl_lmax_larger_than_cls[numpy] (0001_5daafb9)        11.7196 (26.76)      0.3221 (34.27)      8172
test_getcl_lmax_larger_than_cls[numpy] (NOW)                 11.7613 (26.86)      0.4315 (45.91)      8230
test_multalm[numpy] (0001_5daafb9)                          122.6629 (280.14)     2.1285 (226.47)     8124
test_multalm[numpy] (NOW)                                   122.7557 (280.35)     2.2902 (243.68)     8087
test_radialwindow[numpy] (0001_5daafb9)                     455.4797 (>1000.0)    9.0447 (962.36)     7364
test_radialwindow[numpy] (NOW)                              453.7619 (>1000.0)   10.7064 (>1000.0)    6981
----------------------------------------------------------------------------------------------------------

Other

No support for random number generation data-apis/array-api#874.

Typing is currently performed using unions of array typing awaiting data-apis/array-api-typing.

from typing import TypeAlias
import jaxtyping
import numpy as np
from array_api_strict._array_object import Array

FloatArray: TypeAlias = (
    np.typing.NDArray[np.float64] | jaxtyping.Array | Array
)

Can contribute more functions to data-apis/array-api-extra.

Conclusions

The Python Array API allows library maintainers to support multiple array backends.
The framework is still new so only a few libraries have full support: NumPy, JAX, CuPy.
Not all aspects of array backends are supported, e.g. random number generation, typing, …
The standard comes with several packages to aid support: array-api-compat, array-api-extra, array-api-strict, array-api-tests, array-api-typing.
A route to GPU support and automatic differentiation.

QR code linking to this talk's web page.

https://paddyroddy.github.io/talks
